Fixed Type
NPC-3RSS-28
- Wedge type, 3 inch / 2 fingers
- 2 of Air connections at side.
By utilizing the through-hole, seat detection, coolant, and chip removal are possible.
Application
■ By using the through hole ■ Detecting occupant position ■ Coolant ■ Removing chips
Feature
● Long stroke per jaw ø8mm.
● Through hole ø8mm.
…………………………………………………………………………………………………………………………………….
SPECIFICATION
| Model Classification | NPC-3RSS- | |
|---|---|---|
| Type | 28 | |
| Repeat Accuracy | mm | 0.01 |
| Number of Jaws | 2 | |
| Jaw Stroke | ømm | 8 |
| Mounting Hole Pitch | P.C.D70 | |
| Front Mounting Bolts | M5 × 4 positions | |
| Body Mounting Fit Dimensions | mm | ø50+0.05/0×2 |
| Working Fluid | Compressed Air | |
| Operating Air Pressure | Mpa | 0.15–0.6 |
| Body Material | Al | |
| Body Weight | g | 1250 |
| Allowable Rotational Speed | min−1 | – |
| External Diameter Clamping Force (Calculated) | N | 226 (at 0.1 MPa) |
…………………………………………………………………………………………………………………………………….

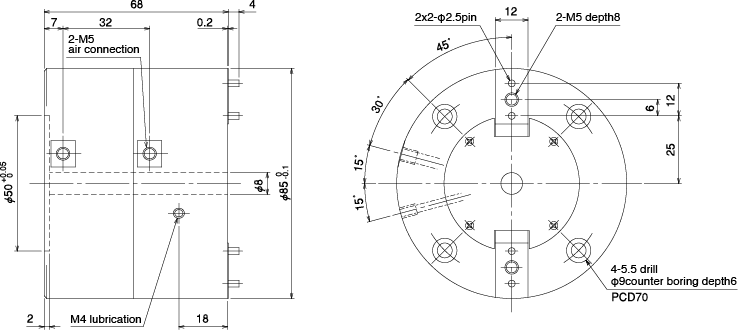

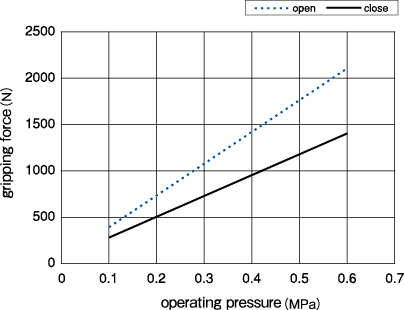

Operating pressure and gripping force
…………………………………………………………………………………………………………………………………….
