Fixed Type
NPC-4RS-310
- Wedge type, 4 inch / 3 fingers
- 2 of Air connections at side.
Because of the long stroke, it offers versatility for workpieces of different diameters.
Application
■ Long stroke per jaws suitable for workpieces with various length.
Feature
● Long stroke per jaw ø10mm general-purpose air chuck.
…………………………………………………………………………………………………………………………………….

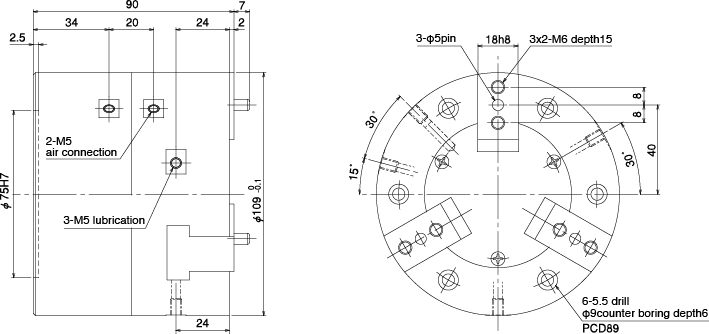

SPECIFICATION
| Model Classification | NPC-4RS- | |
|---|---|---|
| Type | 310 | |
| Repeat Accuracy | mm | 0.005 |
| Number of Jaws | 3 | |
| Jaw Stroke | ømm | 10 |
| Mounting Hole Pitch | P.C.D 89 | |
| Front Mounting Bolts | M5 × 6 positions | |
| Body Mounting Fit Dimensions | mm | ø75H7×2.5 |
| Working Fluid | Compressed Air | |
| Operating Air Pressure | Mpa | 0.15–0.6 |
| Body Material | Fe | |
| Body Weight | g | 4990 |
| Allowable Rotational Speed | min−1 | – |
| External Diameter Clamping Force (Calculated) | N | 417 (at 0.1 MPa) |
…………………………………………………………………………………………………………………………………….

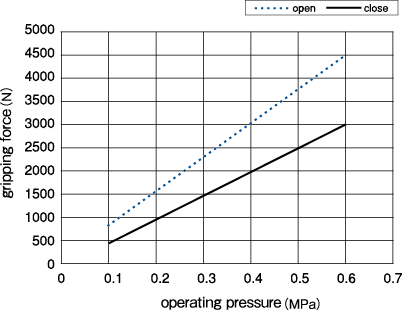

Operating pressure and gripping force.
…………………………………………………………………………………………………………………………………….
