Robot Compatible Fixed Type
NPC-2RS-F22N/25N/F25N
- Wedge type, 2 inch / 2 fingers
- 2 of Air connections at side.
Ideal for angular workpieces.
Application
■ Square workpieces ■ Transffering ■ Assembling

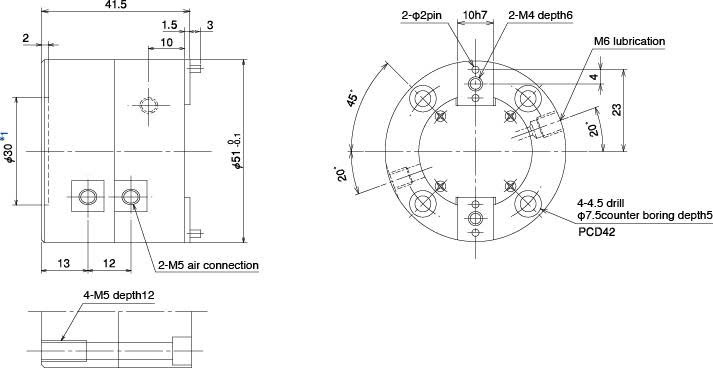

FEATURE
● Claw stroke options: ø2 mm and ø5 mm.
● Repeatability Fe 2μ, Al 10μ
…………………………………………………………………………………………………………………………………….
SPECIFICATION
| Model Classification | NPC-2RS- | NPC-2RS- | NPC-2RS- | |
| Type | F22N | 25N | F25N | |
| Repeat Accuracy | mm | 0.002 | 0.01 | 0.002 |
| Number of Jaws | 2 | 2 | 2 | |
| Jaw Stroke | ømm | 2 | 5 | 5 |
| Mounting Hole Pitch | P.C.D42 | P.C.D42 | P.C.D42 | |
| Front Mounting Bolts | M4 × 4 positions | M4 × 4 positions | M4 × 4 positions | |
| Rear Mounting Bolts | M5 × 4 positions | M5 × 4 positions | M5 × 4 positions | |
| Body Mounting Fit Dimensions | mm | ø30H7×2 | ø30+0.05/0×2 | ø30H7×2 |
| Working Fluid | Compressed Air | Compressed Air | Compressed Air | |
| Operating Air Pressure | Mpa | 0.15〜0.6 | 0.15〜0.6 | 0.15〜0.6 |
| Body Material | Fe | Al | Fe | |
| Body Weight | g | 500 | 250 | 480 |
| Allowable Rotational Speed | min−1 | ー | ー | ー |
| External Diameter Clamping Force (Calculated) | N | 123 (at 0.1 MPa) | 123 (at 0.1 MPa) | 123 (at 0.1 MPa) |
…………………………………………………………………………………………………………………………………….
Operating pressure and gripping force
…………………………………………………………………………………………………………………………………….
