NH 202
Rack & Pinion Type
Precise Power – Unlimited Motion.
Optimized rack & pinion mechanism ensures consistent force throughout the stroke.
Smooth, stable, and durable – the choice of mechanical professionals.
Note: When mounting the upper die on the ram, the weight must be limited to 2 kg. If it exceeds this range, the spindle will automatically drop, affecting operation and causing damage, thereby reducing the machine’s lifespan.
…………………………………………………………………………………………………………………………………….

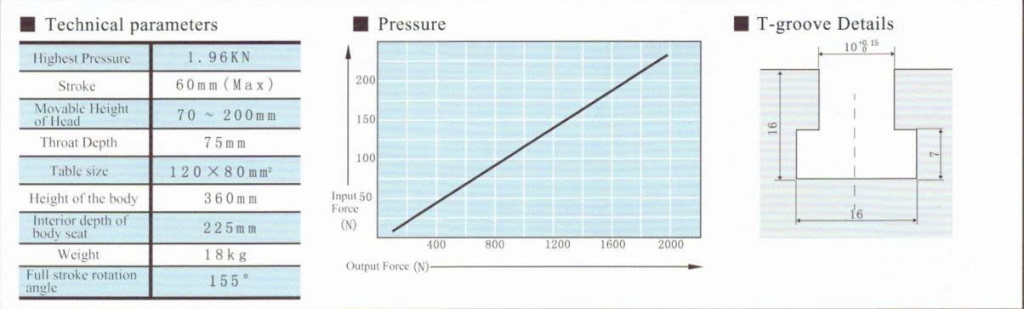

■ Specifications
| Model | NH 202 | |
|---|---|---|
| Maximum Pressing Force | kN | 1.96〜2.0 |
| Hand Lever Input | N | 200 |
| Feed Stroke | mm | 0〜60 |
| Lever Rotation Angle / Stroke | °/mm | 2.25 |
| Maximum Weight of Upper Tooling | kg | 2.0 |
| Overhang Amount | mm | 75 |
| Main Shaft Ram Hole Diameter × Depth | ømm | 10H7×25 |
| Work Height | mm | 70〜200 |
| Frame Height | mm | 360 |
| Table Size | mm | 180×120 |
| Table Hole Diameter | mm | ー |
| Table Height | mm | 56 |
| Mounting Size | mm | 140×225 |
| Weight | kg | 18 |
…………………………………………………………………………………………………………………………………….
■ Option
| Model | NH 202 | |
|---|---|---|
| Nickel-Plated Specification | ● | |
| Distance Block Set | ● | |
| Mechanical Counter | ● | |
| Left Handle | ー | |
| Crank Handle | ● | |
| Fine Adjustment Mechanism (1 scale: 0.02 mm) |
ー | |
| Long Stroke | ー | |
| Return Stroke Lock Mechanismt | ● | |
| Digital Load Indicator “Forster” | ● |
…………………………………………………………………………………………………………………………………….
