NH 600
Rack & Pinion Type
High-Precision Cylindrical Spring Return PressBuilt for endurance – Precision forming – Versatile metalworking applications
Manufactured with high-grade materials and advanced machining techniques for extended service life.
Suitable for precise operations such as pressing, bending, stamping, cutting, embossing, and riveting.
Equipped with cylindrical compression spring for smooth return stroke, rated for up to 1 million cycles, and supports piston workpiece weight up to 2 kg.
…………………………………………………………………………………………………………………………………….

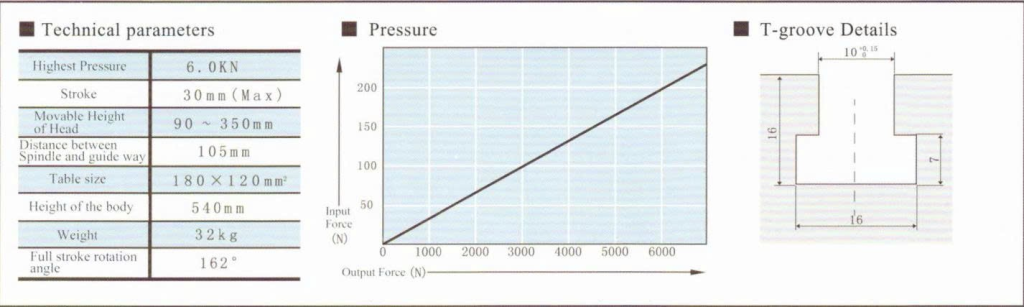

■ Specifications
| Model | NH 600 | |
|---|---|---|
| Maximum Pressing Force | kN | 6.0 |
| Hand Lever Input | N | 200 |
| Feed Stroke | mm | 0〜30 |
| Lever Rotation Angle / Stroke | °/mm | 5.17 |
| Maximum Weight of Upper Tooling | kg | 2.0 |
| Overhang Amount | mm | 105 |
| Main Shaft Ram Hole Diameter × Depth | ømm | 16H7×25 |
| Work Height | mm | 80〜330 |
| Frame Height | mm | 540 |
| Table Size | mm | 180×120 |
| Table Hole Diameter | mm | ー |
| Table Height | mm | 60 |
| Mounting Size | mm | 180×290 |
| Weight | kg | 32 |
…………………………………………………………………………………………………………………………………….
■ Option
| Model | NH 600 | |
|---|---|---|
| Nickel-Plated Specification | ● | |
| Distance Block Set | ● | |
| Mechanical Counter | ● | |
| Left Handle | ー | |
| Crank Handle | ● | |
| Fine Adjustment Mechanism (1 scale: 0.02 mm) |
ー | |
| Long Stroke | ー | |
| Return Stroke Lock Mechanismt | ● | |
| Digital Load Indicator “Forster” | ● |
…………………………………………………………………………………………………………………………………….
