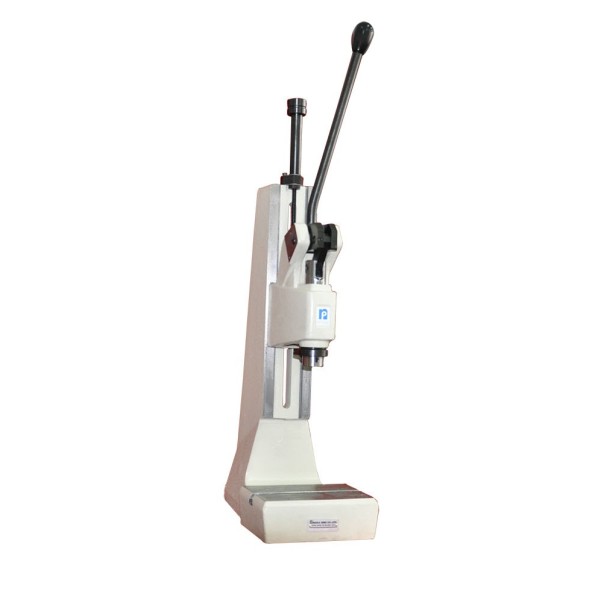

RT 820
Toggle Type
Compact Force, Exceptional EfficiencyOptimized for complex operations – Powerful press force in a compact body.
The RT820 combines a high press force of 9.8 kN with a robust, space-saving design to deliver superior performance in intricate machining tasks.
Ideal for medium-to-large components requiring long stroke and deep forming, it’s built tough and engineered for convenience.
…………………………………………………………………………………………………………………………………….

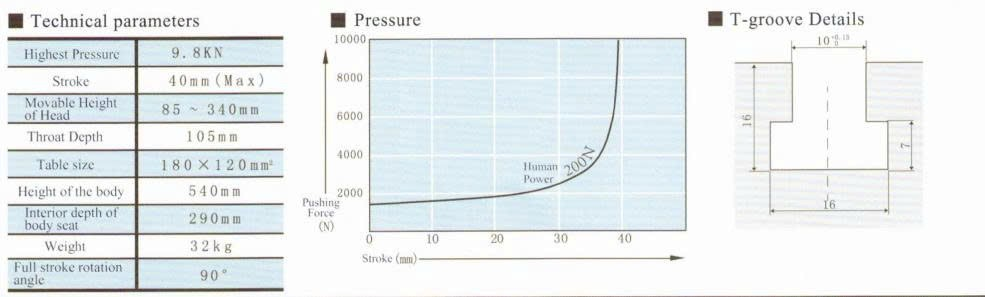

■ Specifications
| Model | RT 820 | |
|---|---|---|
| Maximum Thrust | kN | 9.8 |
| Advancing Stroke | mm | 40 |
| Lever Rotation Angle / Stroke | °/mm | 90 |
| Maximum Weight of Upper Tooling | kg | 2 |
| Overhang Amount | mm | 105 |
| Main Shaft Ram Hole Diameter × Depth | ømm | 10H7×25 |
| Work Height | mm | 85〜340 |
| Frame Height | mm | 540 |
| Table Size | mm | 180×120 |
| Table Hole Diameter | mm | ー |
| Table Height | mm | 60 |
| Mounting Size | mm | 120×290 |
| Weight | kg | 32 |
…………………………………………………………………………………………………………………………………….
■ Option
| Model | RT 820 | |
|---|---|---|
| Nickel-Plated Specification | ● | |
| Distance Block Set | ● | |
| Mechanical Counter | ー | |
| Left Handle | ー | |
| Crank Handle | ● | |
| Fine Adjustment Mechanism (1 scale: 0.02 mm) |
ー | |
| Return Stroke Lock Mechanismt | ー | |
| Digital Load Indicator “Forster” | ● |
…………………………………………………………………………………………………………………………………….
