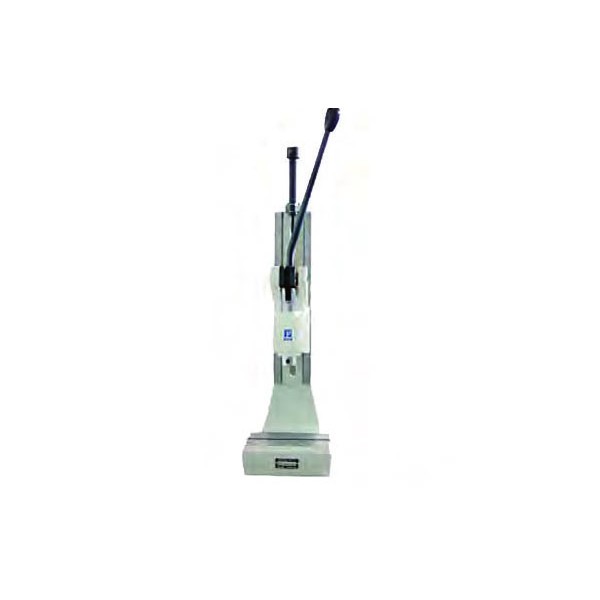

RT 840
Toggle Type
High Force, Optimized Performance – Strong Pressing Power – High Efficiency – Compact Engineering
The RT840 is your ideal solution for processing medium and large components that demand precise stroke control and powerful forming force.
With its compact design and robust build, the RT840 boosts productivity while conserving valuable workspace.
…………………………………………………………………………………………………………………………………….

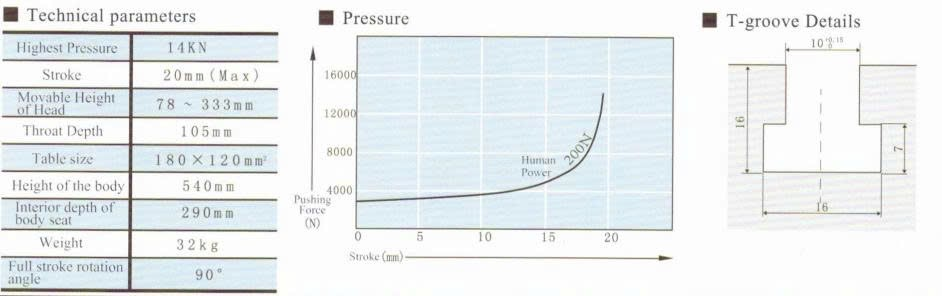

■ Specifications
| Model | RT 840 | |
|---|---|---|
| Maximum Thrust | kN | 14.0 |
| Advancing Stroke | mm | 20 |
| Lever Rotation Angle / Stroke | °/mm | 90 |
| Maximum Weight of Upper Tooling | kg | 2 |
| Overhang Amount | mm | 105 |
| Main Shaft Ram Hole Diameter × Depth | ømm | 10H7×25 |
| Work Height | mm | 78〜333 |
| Frame Height | mm | 540 |
| Table Size | mm | 180×120 |
| Table Hole Diameter | mm | ー |
| Table Height | mm | 60 |
| Mounting Size | mm | 120×290 |
| Weight | kg | 32 |
…………………………………………………………………………………………………………………………………….
■ Option
| Model | RT 840 | |
|---|---|---|
| Nickel-Plated Specification | ● | |
| Distance Block Set | ● | |
| Mechanical Counter | ー | |
| Left Handle | ー | |
| Crank Handle | ● | |
| Fine Adjustment Mechanism (1 scale: 0.02 mm) |
ー | |
| Return Stroke Lock Mechanismt | ー | |
| Digital Load Indicator “Forster” | ● |
…………………………………………………………………………………………………………………………………….
