SPINDLE
Integrated Chuck-Spindle Type
Suitable for advanced precision machining and inspection purposes.
Designed with a high-rigidity spindle and high-precision air chuck, as a total integrated system.
※This is a made-to-order product based on customer requirements. Specifications, values, and appearance may be subject to change. Please contact us for details.

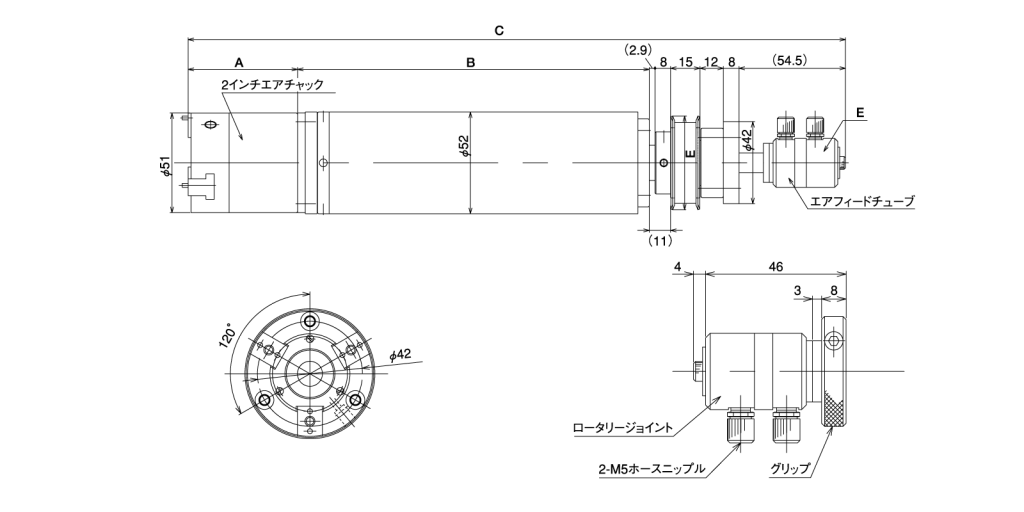

| Symbol/Item | NSPC-52220R | NSPC-52220S |
| A | 54.5 (Note 1) | 54.5 (Note 1) |
| B | 160 | 100 |
| C | 328 (Note 2) | 266 (Note 2) |
| D | 52 | 52 |
| E | Pulley (Note 3) | Pulley (Note 3) |
| F | Air Feed Tube FT-20 | Air Feed Tube FT-20 |
| Max Rotational Speed | 1000 (Note 4) | 1000 (Note 4) |
| Lubrication Method | Grease | Grease |
| Max Radial Load (Kg) | Depends on specifications (Note 5) | Depends on specifications (Note 5) |
| Max Axial Load (Kg) | Depends on specifications (Note 5) | Depends on specifications (Note 5) |
| Weight (Kg) | Approx. 4 | Approx. 3 |
Note 1) Varies depending on chuck type.
Note 2) Varies depending on air chuck type and air feed tube length.
Note 3) Pulley specifications may change depending on transmission output conditions. Please inquire for details.
Note 4) Maximum rotational speed may decrease depending on workpiece type and jaw shape.
Note 5) Please inquire for details.
