TAPPU SARAICHAN TP-01

Just push and pull, and the tap rotates.
Easily and semi-automatically, it cleans up the threads neatly.

  • ・Just push and pull to finish tap correction.
  • ・Speed adjustment is fully flexible.
  • ・Usable anywhere with a 100V power supply.
  • ・Compact design that saves space.
  • ・Custom design available to match your workpiece.
  • ・We can test using your actual workpiece.

*Depends on material and conditions.

Model   TP-01

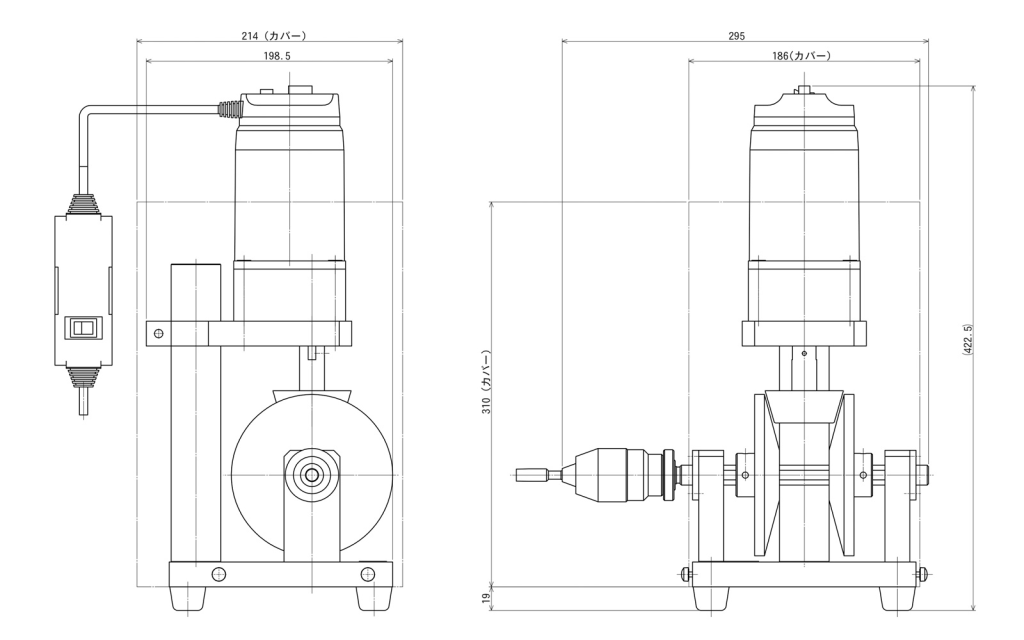

Dimensions mm W 295 × D 198.5 × H 422.2
Weight kg 17
Drill Chuck Capacity mm 0.5–10
Speed Control Motor   PSH540-410P
Gear Head (Reduction Ratio 6)   5GN-6K
Max Output W 40
Voltage/Frequency/Current/
Power Consumption
V/Hz/A/W Single-phase 100/50/1/90
Single-phase 100/60/1/90
Power Input Voltage V Single-phase 100
Power Input Frequency Hz 50/60
Speed Control Range    50Hz:15-233 r/min
60Hz:15-250 r/min
Allowable Torque (Motor Shaft)   0.5-0.99N・m
Rotation Speed Setting Method    Rear Motor SPEED CONTROL Knob
Overheat Protection Type   Thermal Protector
Protection Circuit   Built-in fuse (non-replaceable)
