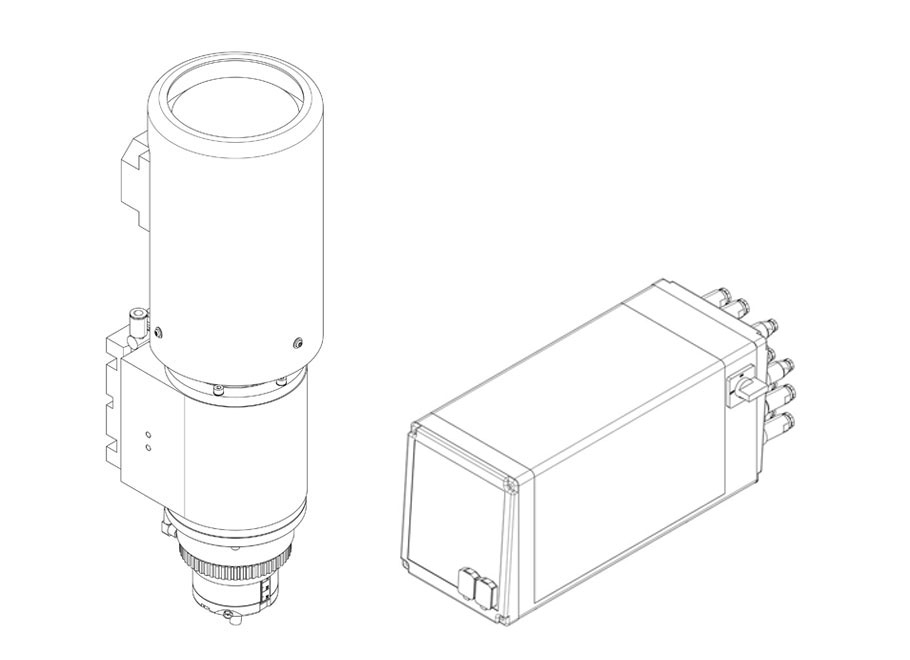

RADIAL RIVETING UNITS – RNE181-HPP
Model: RNE181-HPP
Design: Unit
Process: Radial
Force Generation: Pneumatic
Riveting Force: 2.20 kN – 6.60 kN
Stroke: 5.00 mm – 30.00 mm

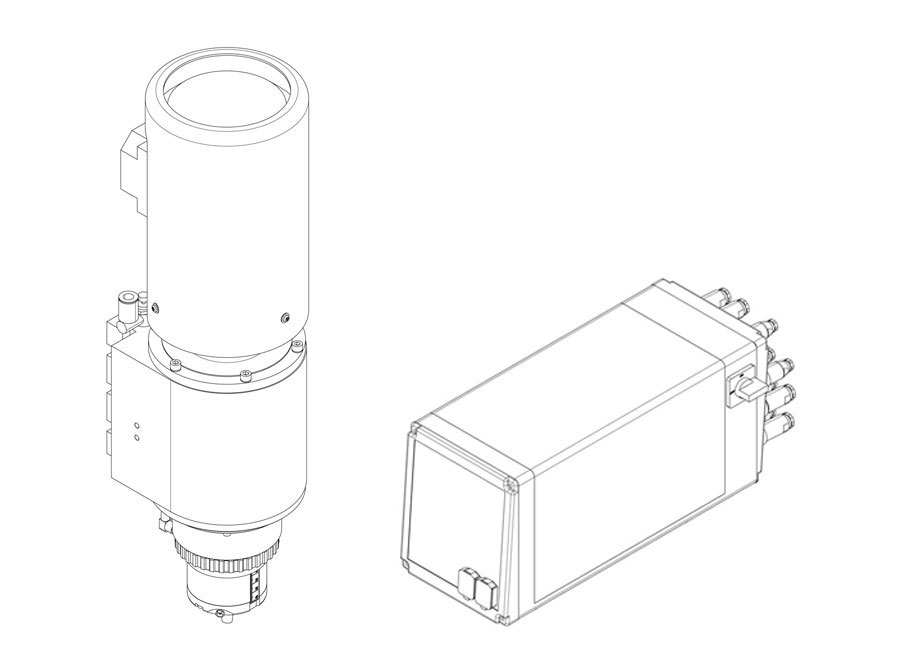

RADIAL RIVETING UNITS – RNE231R-HPP
Model: RNE231R-HPP
Design: Unit
Process: Radial
Force Generation: Pneumatic
Riveting Force: 2.07 kN – 6.20 kN
Stroke: 5.00 mm – 40.00 mm

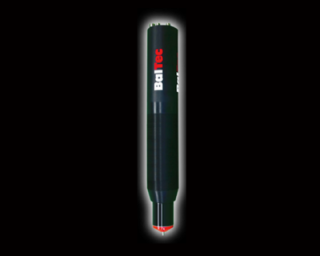

SERVO RIVETING UNITS
BalTec servo riveting units and have a coaxial motor concept and are therefore very space saving. A further advantage is the interchangeable riveting head which allows users to apply the machine for different processes.

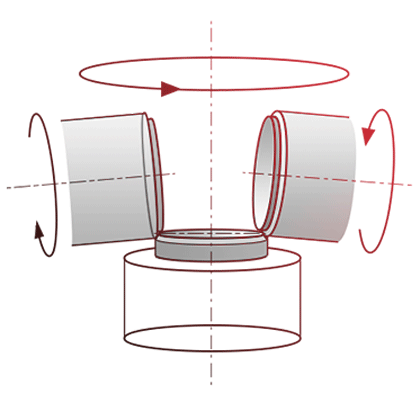

ROLLER FORMING
Two or more rollers are part of a roller forming head. This is a gentle process, suitable for hollow parts, which accommodates a great range in part diameter and is and ideal for forming delicate, thin wall components.

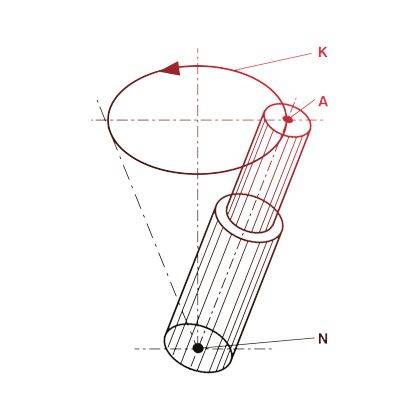

ORBITAL RIVETING
The orbital riveting technology is different in its forming pattern compared to radial. In orbital riveting, the forming tool describes a circular movement. It is suitable for hollow parts with larger diameters.
RADIAL RIVETING
Describing a rosette-shaped motion molding in three different directions, it is known as one of the most gentle riveting process. For little forces.
